Morphology of sting, venom duct, venom sac and venom gland of wasps (Hymenoptera: Vespidae) found in northeastern Thailand

Piyamas N. Sopaladawan

Department of Biology, Faculty of Science, Mahasarakham University, Kham Riang, Kantarawichai, Maha Sarakham, Thailand

Siraprapa Ubonlerd

Department of Biology, Faculty of Science, Mahasarakham University, Kham Riang, Kantarawichai, Maha Sarakham, Thailand

DOI: https://doi.org/10.14456/apst.2025.25

Keywords: Morphology Sting Venom duct Venom gland Venom sac Wasp

Abstract

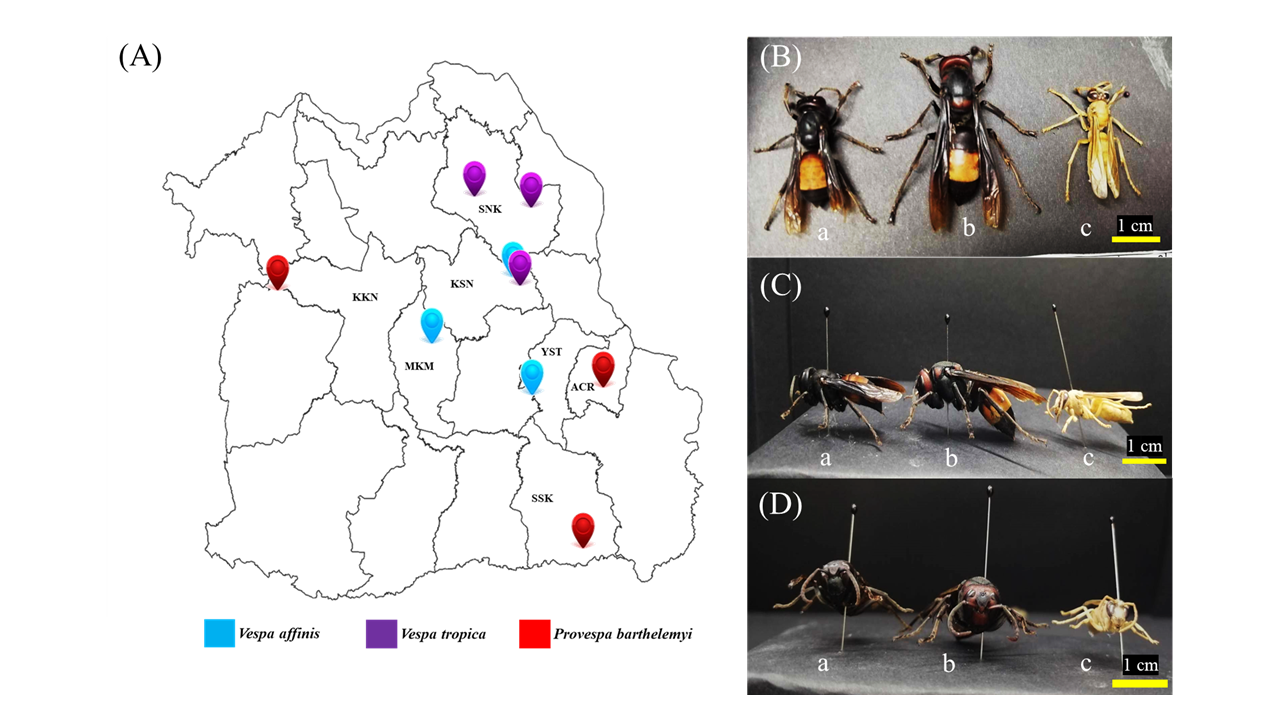

Wasps (Hymenoptera: Vespidae) play a role in the ecosystem as predators. The wasp’s sting is a vital weapon that has varying structures across species. This study aims to investigate morphological characteristics of sting, venom duct, venom sac and venom gland of wasps in three species: Vespa affinis Linnaeus, 1764, V. tropica Linnaeus, 1764, and Provespa barthelemyi Buysson, 1905. Samples were collected from 7 provinces in northeastern Thailand: Kalasin, Khon Kaen, Maha Sarakham, Yasothon, Sakon Nakhon, Sisaket, and Amnat Charoen. Three nests per species, 50 individuals per nest, were collected and preserved in 80% ethanol at -20°C. Thirty wasps per species were studied under a stereo microscope and a scanning electron microscope. Average width and length of the stings and its associated glands were analyzed. The results showed that V. tropica had the most curved stylet tip, with average width and length of 320.60 ± 3.15 and 3634.77 ± 80.89 µm. V. affinis had slightly curved stylet tip, with average width and length of 259.42 ± 3.93 and 3199.24 ± 33.51 µm. P. barthelemyi had very slightly curved, with average width and length of 233.18 ± 1.84 and 2272.74 ± 13.27 µm. One-way ANOVA, Cluster Analysis, and Scatter plotting were performed to classify the populations. The venom gland, venom duct, and venom sac among species had similar characteristics but differed significantly in size, muscle bundle arrangement, and internal width of the venom duct. In conclusion, these characteristics of sting and its associated glands can be used to identify wasp species.

How to Cite

Sopaladawan, P. N., & Ubonlerd, S. (2025). Morphology of sting, venom duct, venom sac and venom gland of wasps (Hymenoptera: Vespidae) found in northeastern Thailand. Asia-Pacific Journal of Science and Technology, 30(02), APST–30. https://doi.org/10.14456/apst.2025.25

References

Bissessarsingh M, Starr CK. Comparative morphology of the stinger in social wasps (Hymenoptera: Vespidae). Insects. 2021;12(8):729.

Bank S, Sann M, Mayer C, Meusemann K, Donath A, Podsaidlowski L, et al. Transcriptome and target DNA enrichment sequence data provide new insights into the phylogeny of vespid wasps (Hymenoptera: Aculeata: Vespidae). Mol Phylogenet Evol. 2017;116:213–226.

Jongjitvimol T, Urtgam S. Species and habitat of wasps (Hymenoptera: Vespidae) in Northern Thailand. PSRU J Sci Tech. 2018;3(3):1-10.

Zhao ZL, Zhao HP, Ma GJ, Wu CW, Yang K, Feng XQ. Structures, properties, and functions of the stings of honey bees and paper wasps: a comparative study. Biol Open. 2015;4(7):921-928.

Pickett K, Carpenter J. Simultaneous analysis and the origin of eusociality in the Vespidae (Insecta: Hymenoptera). Arthropod Syst Phylo. 2010;68:3-33.

Persson S. Phylogeny and taxonomy of the subfamily Vespinae (Hymenoptera: Vespidae), based on five molecular markers. Master of Science, University of Gothenburg; 2015.

Robertson PL. A morphological and functional study of the venom apparatus in representatives of some major groups of Hymenoptera. Aust J Zool. 1968;16(1):133-166.

Stetsun H, Rajabi H, Matushkina N, Gorb SN. Functional morphology of the sting in two digger wasps (Hymenoptera: Crabronidae) with different types of prey transport. Arthropod Struct. Dev. 2019;52:100882.

Barbosa DN, Vilhelmsen L, Azevedo CO. Morphology of sting apparatus of Chrysidoidea (Hymenoptera, Aculeata). Arthropod Struct Dev. 2021;60:100999.

Packer L. Comparative morphology of the skeletal parts of the sting apparatus of bees (Hymenoptera: Apoidea). Zool J Linn Soc. 2003;138(1):1-38.

Jayavasti S, Wongsiri S. Scanning electron microscopy analysis of honey bees (Apis florea, Apis dorsata, Apis cerana, Apis mellifera, Apis andreniformis and Apis koschevnikovi) stings. Honeybee Science. 1993;14(3):105-109.

Kumpanenko AS, Gladun DV. Functional morphology of sting apparatus of the spider wasp Cryptocheilus versicolor (Scopoli, 1763) (Hymenoptera: Pompilidae). Entomol Sci. 2017;21(1):124-132.

Das R, Yadav RN, Sihota P, Uniyal P, Kumar N, Bhushan B. Biomechanical evaluation of wasp and honeybee sting. Sci Rep. 2018;8:14945.

Ribeiroa DG, Silvestre R, Garcete-Barrett BR. Diversity of wasps (Hymenoptera: Aculeata: Vespidae) along an altitudinal gradient of Atlantic Forest in Itatiaia National Park, Brazil. Rev Bras Entomol. 2019;63(1):22-29.

Carpenter JM, Nguyen PLT. Keys to the genera of social wasps of South-East Asia. Entomol Sci. 2003;6(3):183-192.

Smith-Pardo AH, Carpenter JM, Kimsey L. The diversity of hornets in the genus Vespa (Hymenoptera: Vespidae; Vespinae) their importance and interceptions in the United States. Insect Syst Divers. 2020;4(3):2.

Dorji P, Gyeltshen T, Klein W, Nidup T. New records of social wasps (Hymenoptera: Vespinae: Vespa and Provespa) from Bhutan. J Threat Taxa. 2017;9(4):10102-10108.

Matushkina NA. Sting microsculpture in the digger wasp Bembix rostrata (Hymenoptera, Crabronidae). J Hymenopt Res. 2011;21(2):41-52.

Sui̇çmez M, Duran M, Özmen K. Investigation of poison gland of Sphex flavipennis Fabrius, 1793 (Hymenoptera: Sphecidae): morphology and ultrastructure. Hittite J Sci Eng. 2017;4(1):65-69.

Van Marle J, Piek T. Morphology of the venom apparatus. In: Piek, T.,editor. Venoms of the Hymenoptera: Biochemical, Pharmacological and Behavioural Aspects; San Diego, CA: Academic Press; 1986. p. 17-44.

Edson KM, Vinson SB. A comparative morphology of the venom apparatus of female braconids (Hymenoptera: Braconidae). Can Entomol. 1979;111(9):1013-1024.

Quicke DLJ, Tunstead J, Falco JV, Marsh PM. Venom gland and reservoir morphology in the Doryctinae and related braconid wasps (Insecta, Hymenoptera, Braconidae). Zool Scr. 1992;21(4):403-416.

Quicke DL, Van Achterberg K, Godfray HCJ. Comparative morphology of the venom gland and reservoir in opiine and alysiine braconid wasps (Insecta, Hymenoptera, Braconidae). Zool Scr. 1997;26(1):23-50.

Elieh Ali Komi D, Shafaghat F, Zwiener RD. Immunology of bee venom. Clin Rev Allergy Immunol. 2018; 54:386-39.

Britto FB, Caetano FH. Ultramorphological analysis of the venom glands and their histochemical relationship with the convoluted glands in the primitive social paper wasp Polistes versicolor (Hymenoptera: Vespidae). J Venom Anim Toxins incl Trop Dis. 2005;11(2):160-174.
